IONIQ 5
Hyundai IONIQ 5 Car Specifications
Dimensions
Unit : mm
| Items | IONIQ 5 |
|---|---|
| Dimensions | |

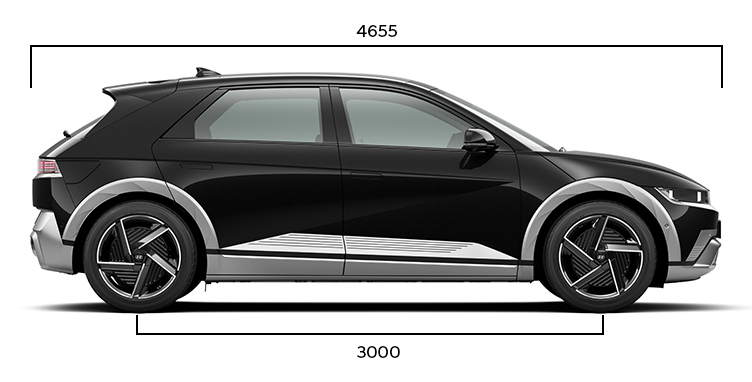

| Overall length (mm) | 4 655 |

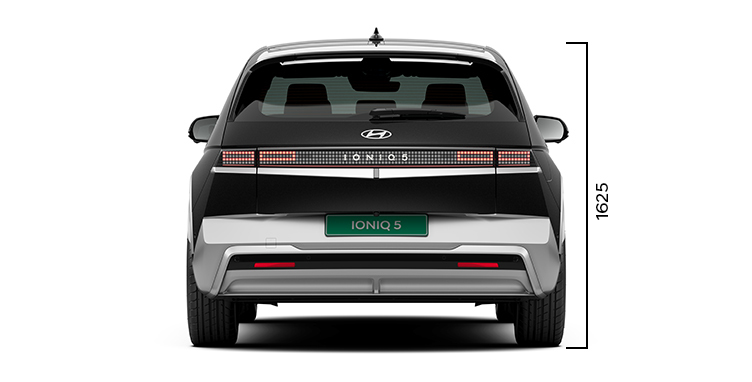

| Overall height (mm) | 1 625* |

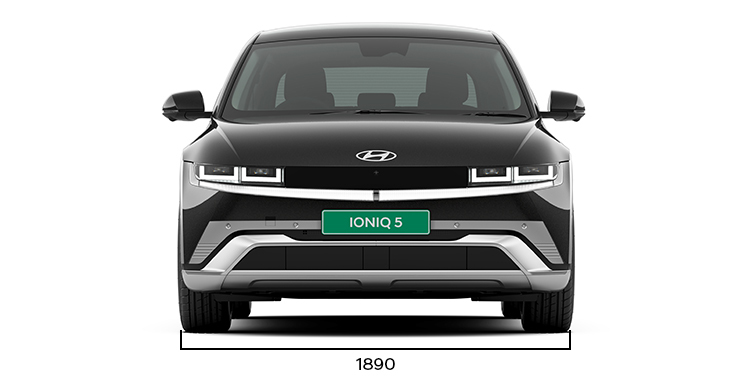

| Overall width (mm) | 1 890 |
| Wheelbase (mm) | 3 000 |
| Electric motor | |
| Electric motor type | Permanent magnet synchronous motor (PMSM) |
| Configuration | Rear wheel drive (RWD) |
| Max power (kW (ps)) | 168 (228.5) |
| High voltage battery & charging | |
| Battery type | Liquid cooled lithium-ion with battery heating system |
| Capacity (kWh) | 84 |
| Estimated AC fast Charging time^ ( SOC 10% to 100%) from 11 kW AC fast Charger | 7 h 35 min |
| Estimated DC Fast Charging time^ (SOC 10% to 80%) using DC fast Charger^^ | 18 min |
| Transmission | |
| Type | Single speed reduction gear |
| Suspension | |
| Front | McPherson strut |
| Rear | Multi-link |
| Brakes | |
| Front | Disc |
| Rear | Disc |
| Wheel & tyre | |
| Size | 255/45 R20 (D=512.8 mm) Aero alloy wheel |
| Spare tyre | Tyre Mobility Kit (TMK) |
* Without shark fin antenna
^ Actual charging time varies based on several factors, including current battery level, output of charging unit, vehicle & battery settings, battery temperature,outside ambient temperature,uninterrupted power supply etc
^^ 350 kW ultra-fast charger required for quickest charging times
